RPS 20HP 480V 90RPS200, Up to 650FT Head, 83 to 119GPM, Stainless Steel Submersible Pump End + Motor
The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.
✅ NSF Drinking Water and UL Compliant
Includes...

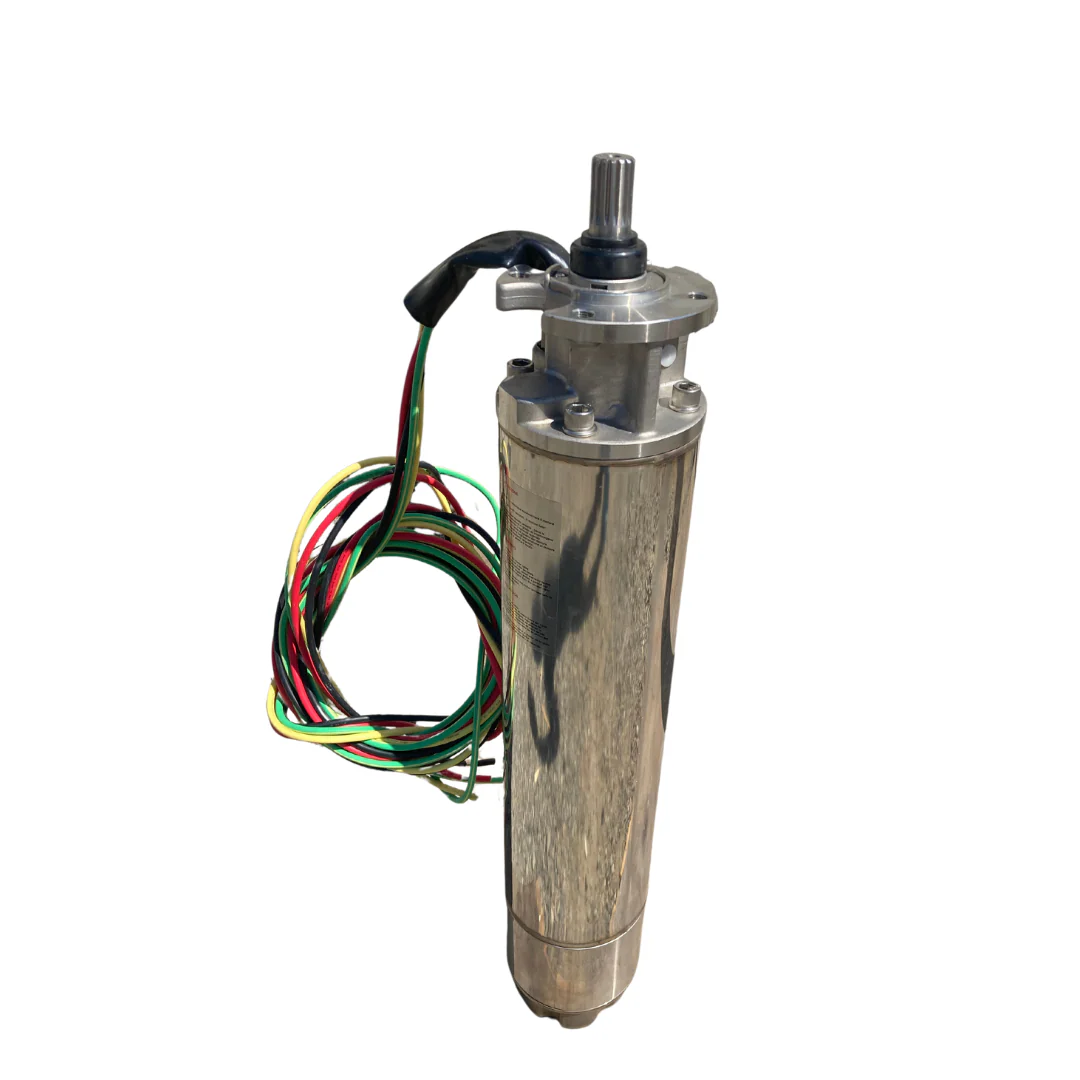

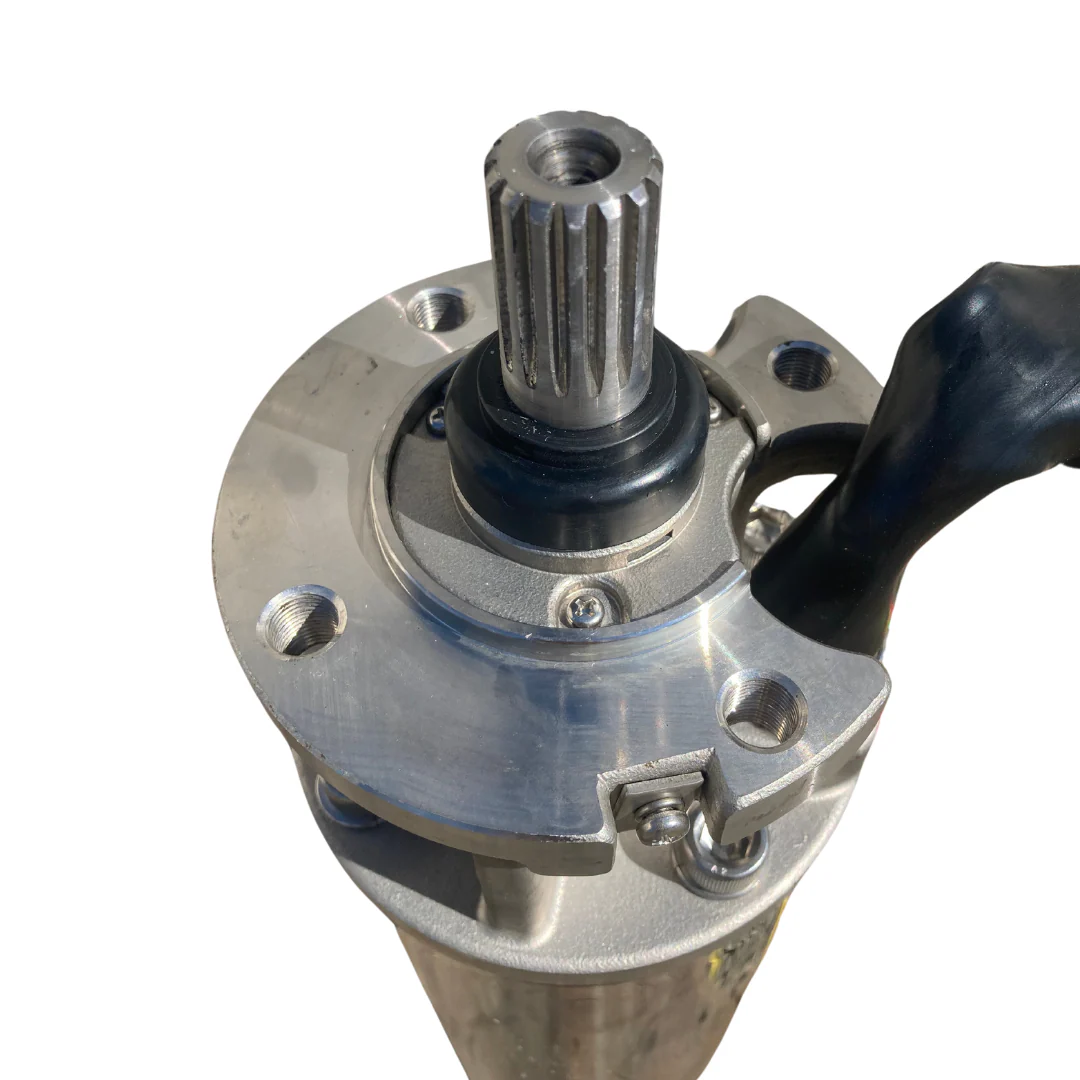

- 20HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End

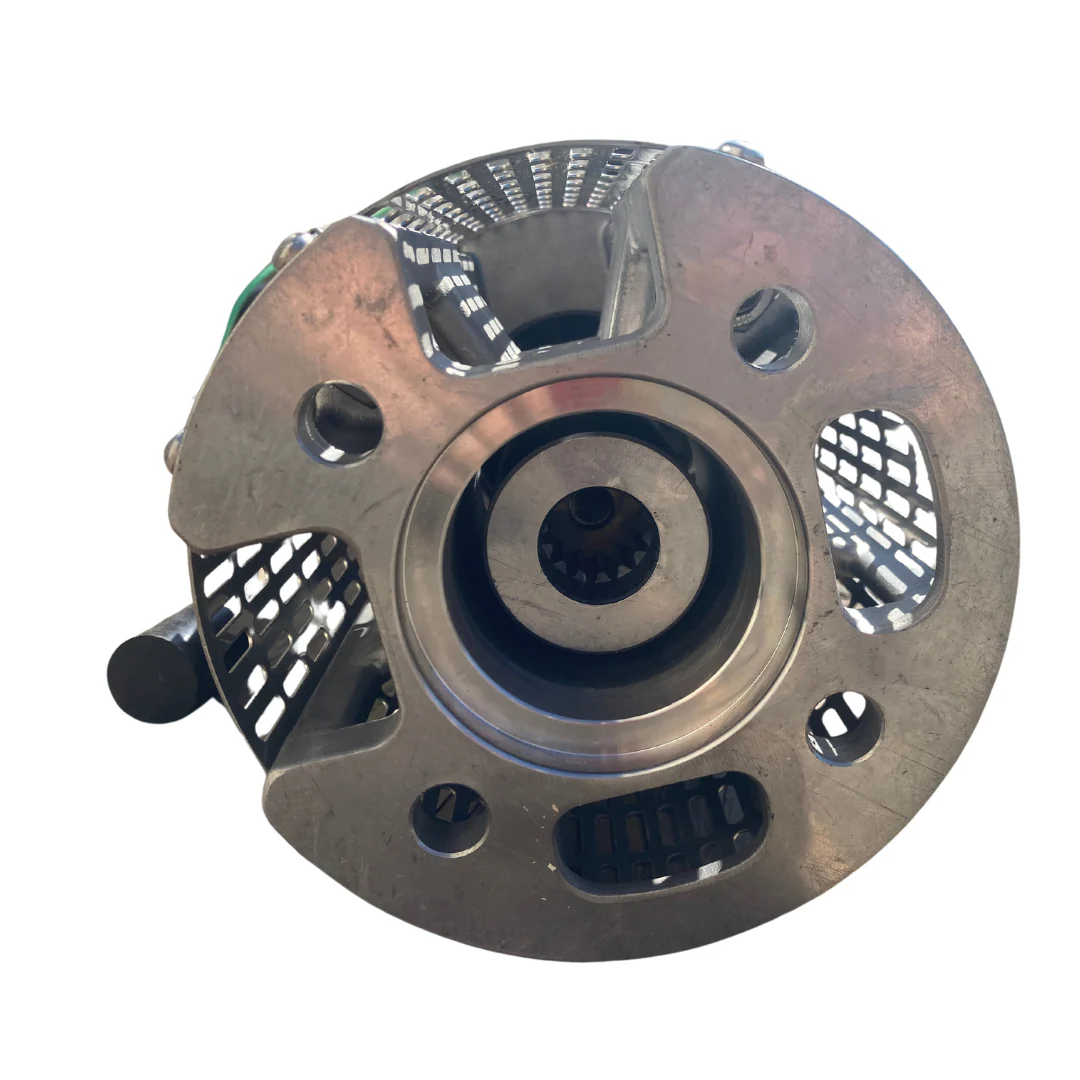

- 3" outlet 90RPS200 83-119GPM Pump End, 6" Outside Diameter
- 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
- Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.
Customer Supplied Magnetic Starter Box.
| Total Head | Gallons Per Minute (GPM) |
| No head | 119 |
| 25 feet |
119 |
| 50 feet |
119 |
| 75 feet |
119 |
| 100 feet |
119 |
| 125 feet |
119 |
| 150 feet |
119 |
| 175 feet |
119 |
| 200 feet |
119 |
| 225 feet |
119 |
| 250 feet |
119 |
| 275 feet | 119 |
| 300 feet | 119 |
| 325 feet |
119 |
| 350 feet | 119 |
| 375 feet | 119 |
| 400 feet | 119 |
| 425 feet | 119 |
| 450 feet | 119 |
| 475 feet | 111 |
| 500 feet | 107 |
| 525 feet | 104 |
| 550 feet | 99 |
| 575 feet | 95 |
| 600 feet | 92 |
| 625 feet | 87 |
| 650 feet | 83 |
| Above 650 feet | Size Up for Optimal Performance |
