RPS 10HP 480V 300RPS100, Up to 140FT Head, 200 to 395GPM, Stainless Steel Submersible Pump End + Motor

Product image 1
1 / 17
+12

RPS 10HP 480V 300RPS100, Up to 140FT Head, 200 to 395GPM, Stainless Steel Submersible Pump End + Motor

The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅  NSF Drinking Water and UL Compliant

Includes...

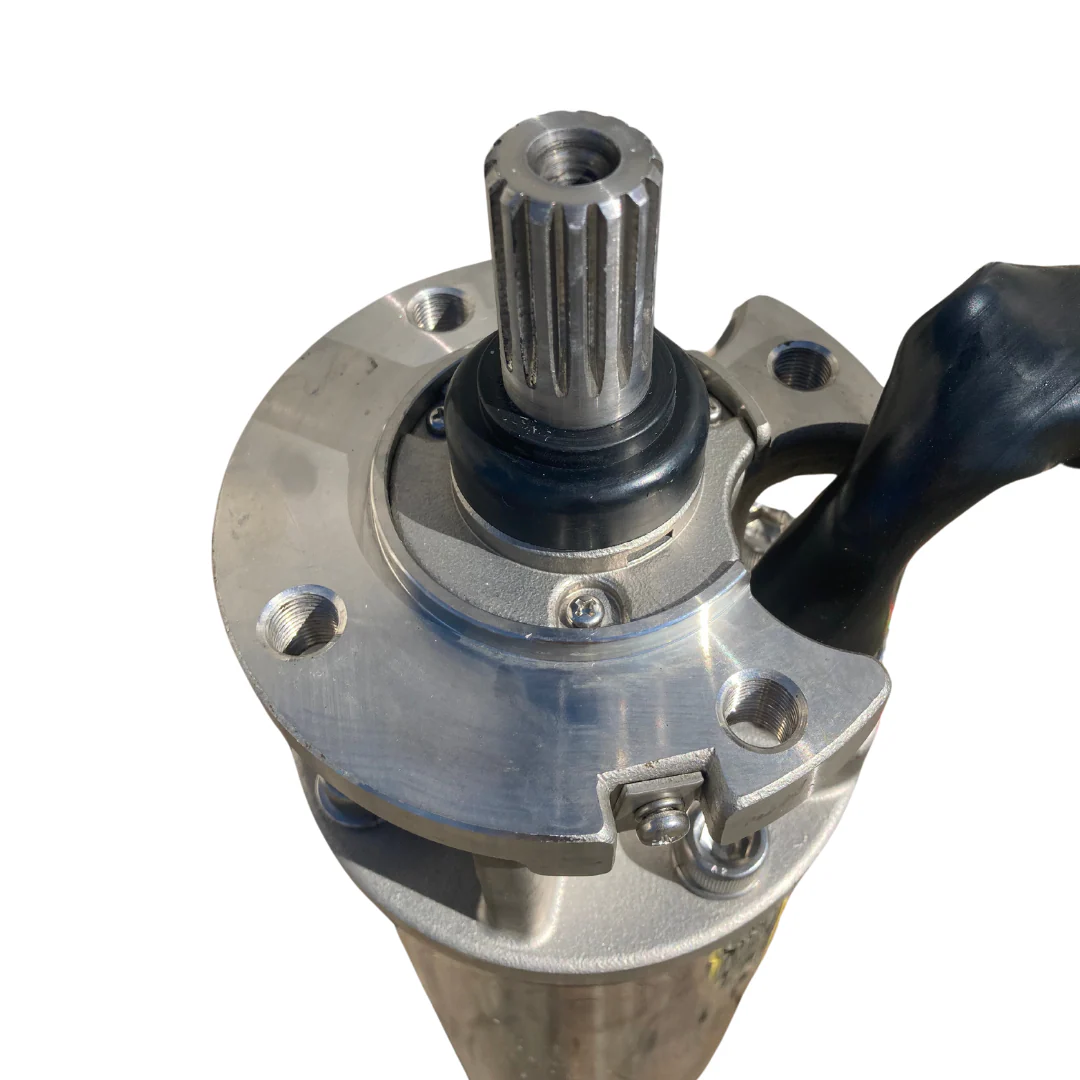

  • 10HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End
  • 3" outlet 300RPS100 200-395GPM Pump End, 6" Outside Diameter
  • 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
  • Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head Gallons Per Minute (GPM)
No head 396
50 feet 396
60 feet  388
70 feet 370
80 feet  345
90 feet  320
100 feet  298
110 feet  173
120 feet  238
130 feet 216
140 feet 200
Above 140 feet  Size Up for Optimal Performance



The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅  NSF Drinking Water and UL Compliant

Includes...

  • 10HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End
  • 3" outlet 300RPS100 200-395GPM Pump End, 6" Outside Diameter
  • 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
  • Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head Gallons Per Minute (GPM)
No head 396
50 feet 396
60 feet  388
70 feet 370
80 feet  345
90 feet  320
100 feet  298
110 feet  173
120 feet  238
130 feet 216
140 feet 200
Above 140 feet  Size Up for Optimal Performance



$3,549.99
RPS 10HP 480V 300RPS100, Up to 140FT Head, 200 to 395GPM, Stainless Steel Submersible Pump End + Motor—
$3,549.99

Description

The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅  NSF Drinking Water and UL Compliant

Includes...

  • 10HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End
  • 3" outlet 300RPS100 200-395GPM Pump End, 6" Outside Diameter
  • 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
  • Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head Gallons Per Minute (GPM)
No head 396
50 feet 396
60 feet  388
70 feet 370
80 feet  345
90 feet  320
100 feet  298
110 feet  173
120 feet  238
130 feet 216
140 feet 200
Above 140 feet  Size Up for Optimal Performance
