RPS 15HP 480V 230RPS150, Up to 250FT Head, 155 to 317GPM, Stainless Steel Submersible Pump End + Motor

Product image 1
1 / 14
+9

RPS 15HP 480V 230RPS150, Up to 250FT Head, 155 to 317GPM, Stainless Steel Submersible Pump End + Motor

The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅  NSF Drinking Water and UL Compliant

Includes...

  • 15HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End
  • 3" outlet 230RPS150 155-317GPM Pump End, 6" Outside Diameter

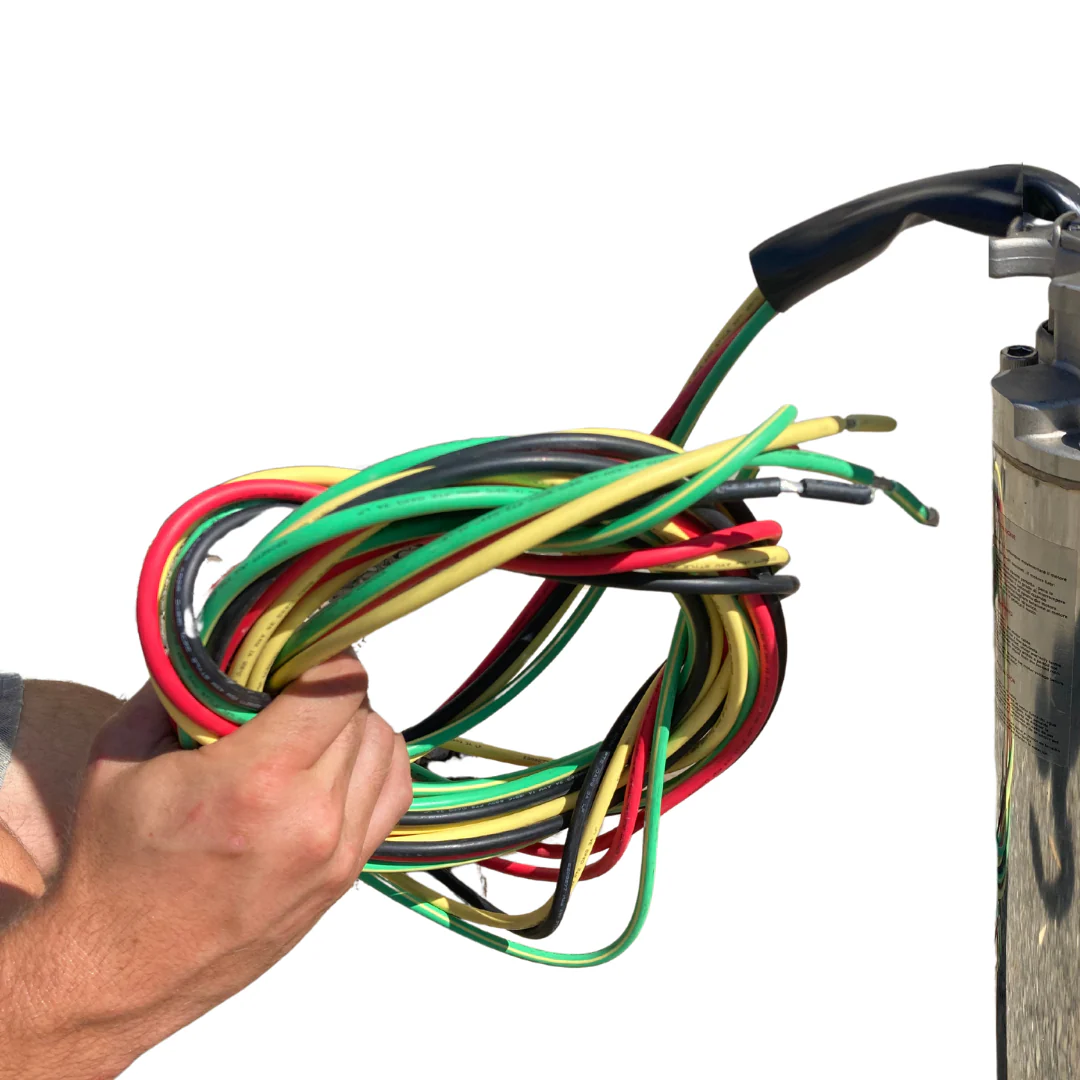

  • 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
  • Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head Gallons Per Minute (GPM)
No head 317
20 feet 317
30 feet  317
40 feet 317
50 feet  317
60 feet  317
70 feet  317
80 feet  317
90 feet  317
100 feet 317
110 feet 317
120 feet 310
130 feet 301
140 feet 291
150 feet 275
160 feet 269
170 feet 262
180 feet 253
190 feet 241
200 feet 235
210 feet 211
220 feet 188
230 feet 176
240 feet 164
250 feet 155
Above 250 feet  Size Up for Optimal Performance



The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅  NSF Drinking Water and UL Compliant

Includes...

  • 15HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End
  • 3" outlet 230RPS150 155-317GPM Pump End, 6" Outside Diameter
  • 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
  • Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head Gallons Per Minute (GPM)
No head 317
20 feet 317
30 feet  317
40 feet 317
50 feet  317
60 feet  317
70 feet  317
80 feet  317
90 feet  317
100 feet 317
110 feet 317
120 feet 310
130 feet 301
140 feet 291
150 feet 275
160 feet 269
170 feet 262
180 feet 253
190 feet 241
200 feet 235
210 feet 211
220 feet 188
230 feet 176
240 feet 164
250 feet 155
Above 250 feet  Size Up for Optimal Performance



$4,249.99
RPS 15HP 480V 230RPS150, Up to 250FT Head, 155 to 317GPM, Stainless Steel Submersible Pump End + Motor—
$4,249.99

Description

The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅  NSF Drinking Water and UL Compliant

Includes...

  • 15HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End
  • 3" outlet 230RPS150 155-317GPM Pump End, 6" Outside Diameter
  • 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
  • Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head Gallons Per Minute (GPM)
No head 317
20 feet 317
30 feet  317
40 feet 317
50 feet  317
60 feet  317
70 feet  317
80 feet  317
90 feet  317
100 feet 317
110 feet 317
120 feet 310
130 feet 301
140 feet 291
150 feet 275
160 feet 269
170 feet 262
180 feet 253
190 feet 241
200 feet 235
210 feet 211
220 feet 188
230 feet 176
240 feet 164
250 feet 155
Above 250 feet  Size Up for Optimal Performance
