RPS 50HP 480V 500RPS500, Up to 525FT Head, 210 to 660GPM, Stainless Steel Submersible Pump End + Motor

Product image 1
1 / 14
+9

RPS 50HP 480V 500RPS500, Up to 525FT Head, 210 to 660GPM, Stainless Steel Submersible Pump End + Motor

The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅  NSF Drinking Water and UL Compliant

Includes...

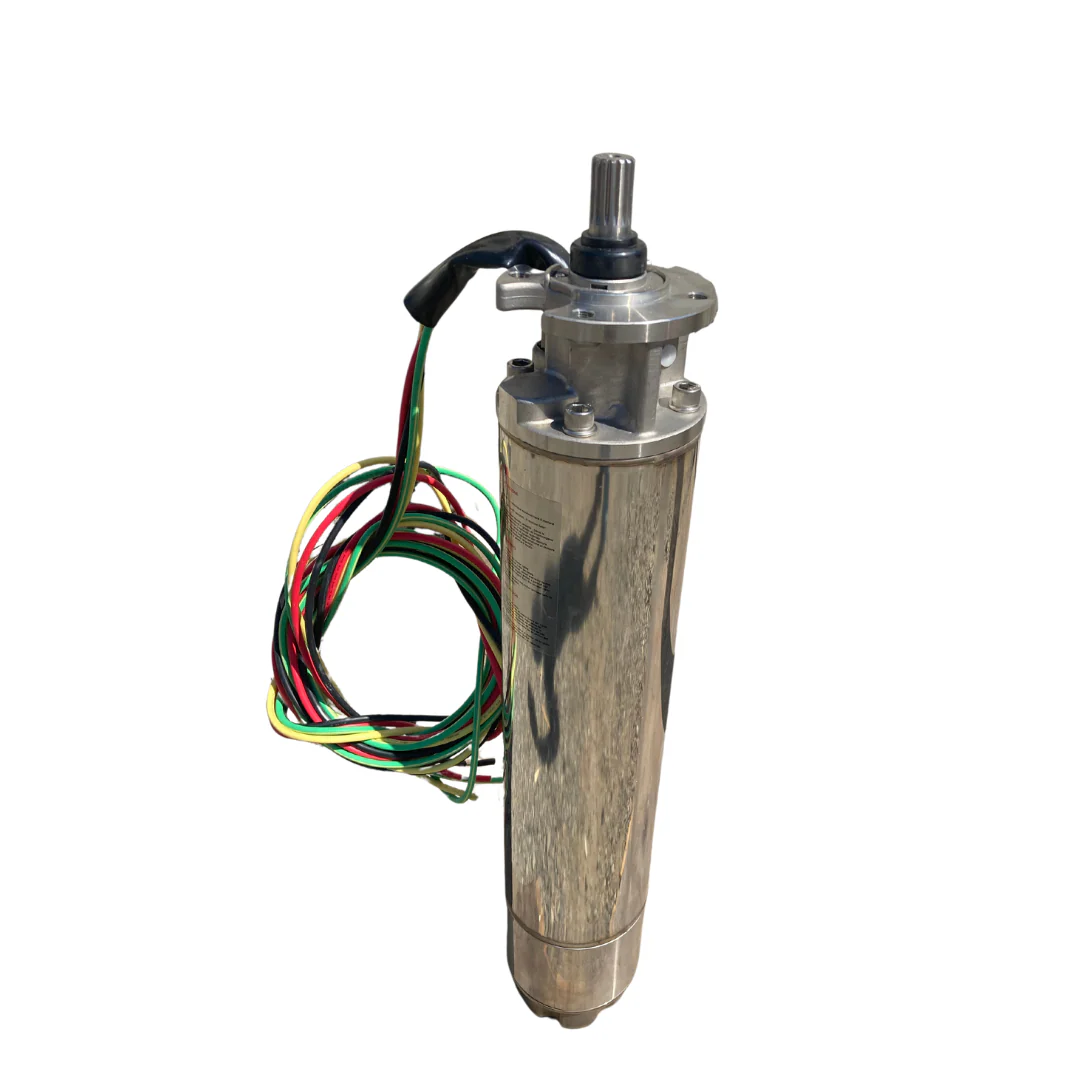

  • 50HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End
  • 5" outlet 500RPS500 210-660GPM Pump End, 7.1" Outside Diameter
  • 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
  • Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head Gallons Per Minute (GPM)
No head 660
10 feet 660
20 feet  660
30 feet 660
40 feet  660
50 feet  660
60 feet  660
70 feet  660
80 feet  660
90 feet 660
100 feet 660
110 feet 660
120 feet 660
130 feet 660
140 feet 660
150 feet 660
175 feet 660
200 feet 655
225 feet 635
250 feet 612
275 feet  588
300 feet 561
325 feet 530
350 feet 495
375 feet 455
400 feet 403
425 feet 356
450 feet 318
475 feet 283
500 feet 245
525 feet 210
Above 525 feet  Size Up for Optimal Performance



The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅  NSF Drinking Water and UL Compliant

Includes...

  • 50HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End
  • 5" outlet 500RPS500 210-660GPM Pump End, 7.1" Outside Diameter
  • 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
  • Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head Gallons Per Minute (GPM)
No head 660
10 feet 660
20 feet  660
30 feet 660
40 feet  660
50 feet  660
60 feet  660
70 feet  660
80 feet  660
90 feet 660
100 feet 660
110 feet 660
120 feet 660
130 feet 660
140 feet 660
150 feet 660
175 feet 660
200 feet 655
225 feet 635
250 feet 612
275 feet  588
300 feet 561
325 feet 530
350 feet 495
375 feet 455
400 feet 403
425 feet 356
450 feet 318
475 feet 283
500 feet 245
525 feet 210
Above 525 feet  Size Up for Optimal Performance



$12,959.99
RPS 50HP 480V 500RPS500, Up to 525FT Head, 210 to 660GPM, Stainless Steel Submersible Pump End + Motor—
$12,959.99

Description

The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅  NSF Drinking Water and UL Compliant

Includes...

  • 50HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End
  • 5" outlet 500RPS500 210-660GPM Pump End, 7.1" Outside Diameter
  • 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
  • Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head Gallons Per Minute (GPM)
No head 660
10 feet 660
20 feet  660
30 feet 660
40 feet  660
50 feet  660
60 feet  660
70 feet  660
80 feet  660
90 feet 660
100 feet 660
110 feet 660
120 feet 660
130 feet 660
140 feet 660
150 feet 660
175 feet 660
200 feet 655
225 feet 635
250 feet 612
275 feet  588
300 feet 561
325 feet 530
350 feet 495
375 feet 455
400 feet 403
425 feet 356
450 feet 318
475 feet 283
500 feet 245
525 feet 210
Above 525 feet  Size Up for Optimal Performance
