RPS 20HP 480V 500RPS200, Up to 200FT Head, 324 to 660GPM, Stainless Steel Submersible Pump End + Motor
The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.
✅ NSF Drinking Water and UL Compliant
Includes...

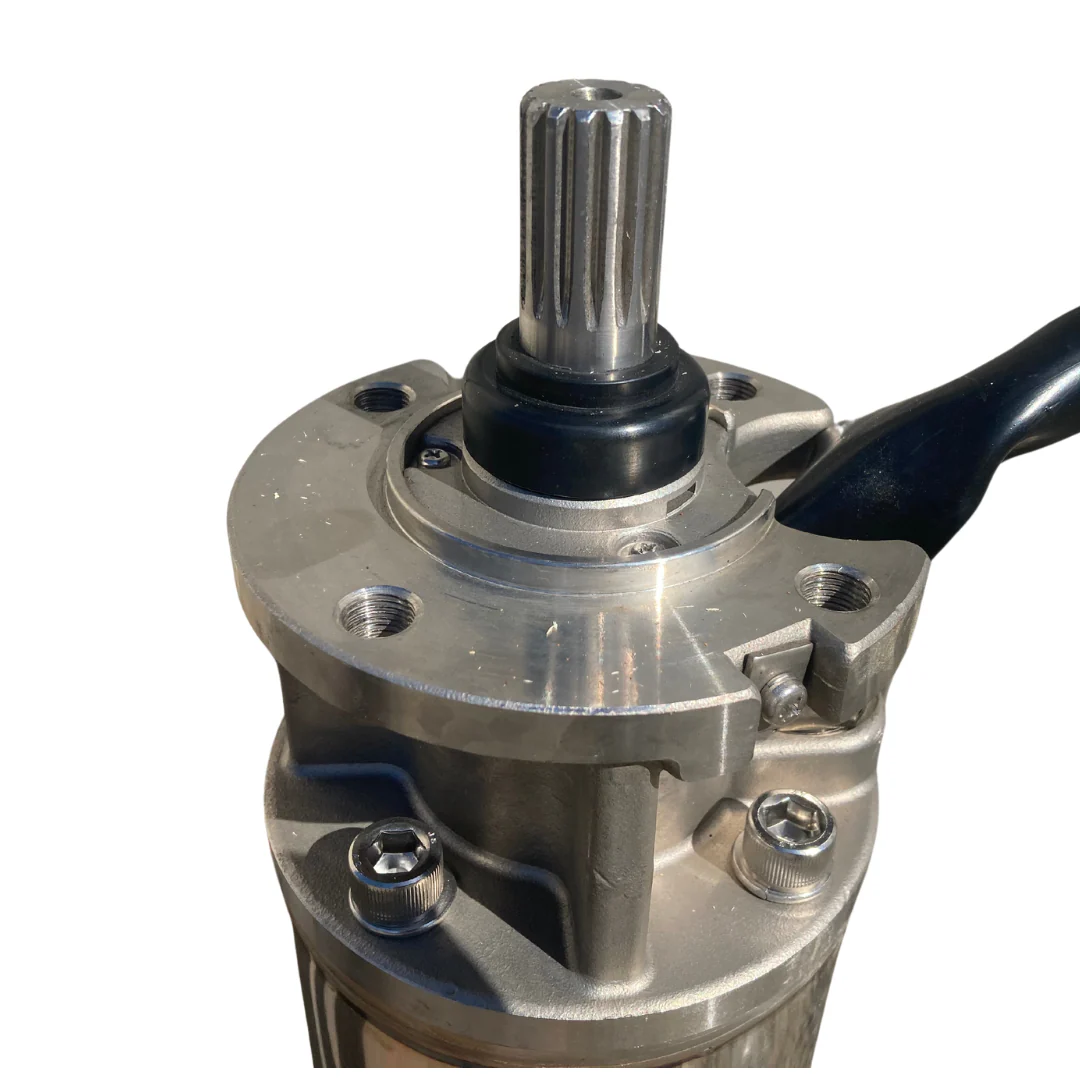

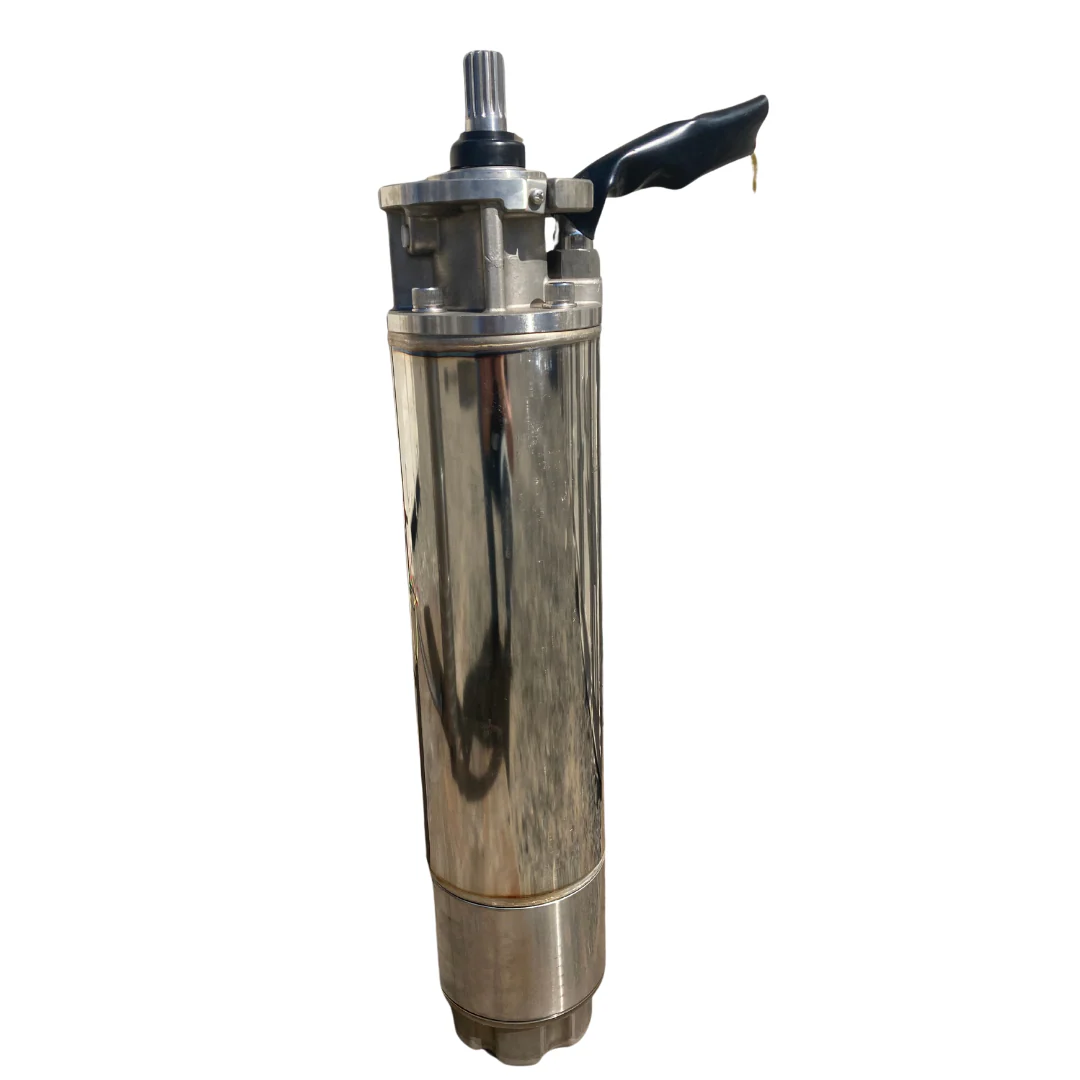

- 20HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End
- 5" outlet 500RPS200 324-660GPM Pump End, 8" Outside Diameter
- 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
- Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.
Customer Supplied Magnetic Starter Box.
| Total Head | Gallons Per Minute (GPM) |
| No head | 660 |
| 10 feet |
660 |
| 20 feet |
660 |
| 30 feet |
660 |
| 40 feet |
660 |
| 50 feet | 630 |
| 60 feet | 618 |
| 70 feet | 601 |
| 80 feet | 578 |
| 90 feet | 555 |
| 100 feet | 531 |
| 110 feet | 509 |
| 120 feet | 488 |
| 130 feet | 465 |
| 140 feet | 450 |
| 150 feet | 412 |
| 160 feet | 368 |
| 175 feet | 324 |
| Above 175 feet | Size Up for Optimal Performance |
The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.
✅ NSF Drinking Water and UL Compliant
Includes...
- 20HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End
- 5" outlet 500RPS200 324-660GPM Pump End, 8" Outside Diameter
- 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
- Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.
Customer Supplied Magnetic Starter Box.
