RPS 25HP 480V 500RPS250, Up to 200FT Head, 329 to 660GPM, Stainless Steel Submersible Pump End + Motor
The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.
✅ NSF Drinking Water and UL Compliant
Includes...

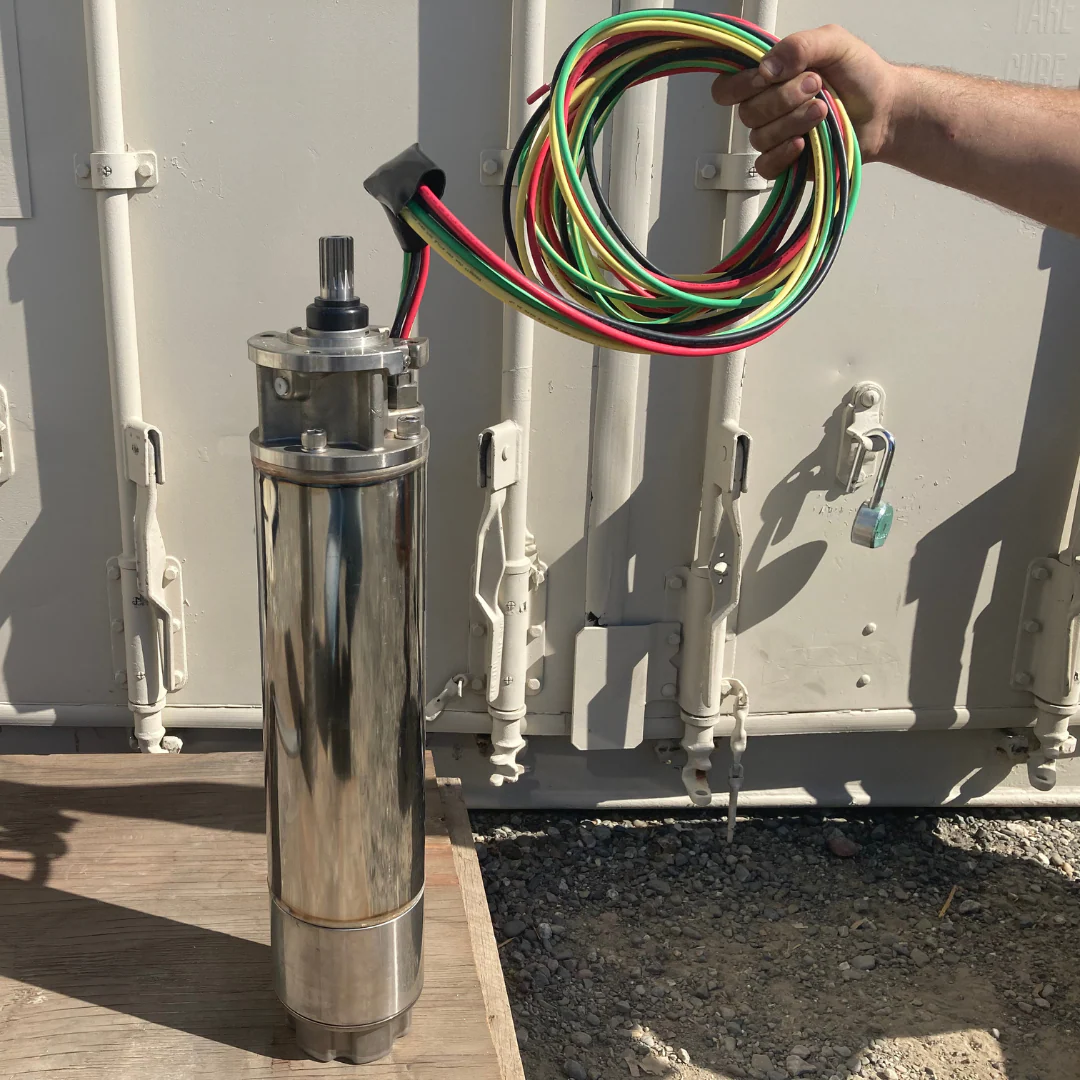

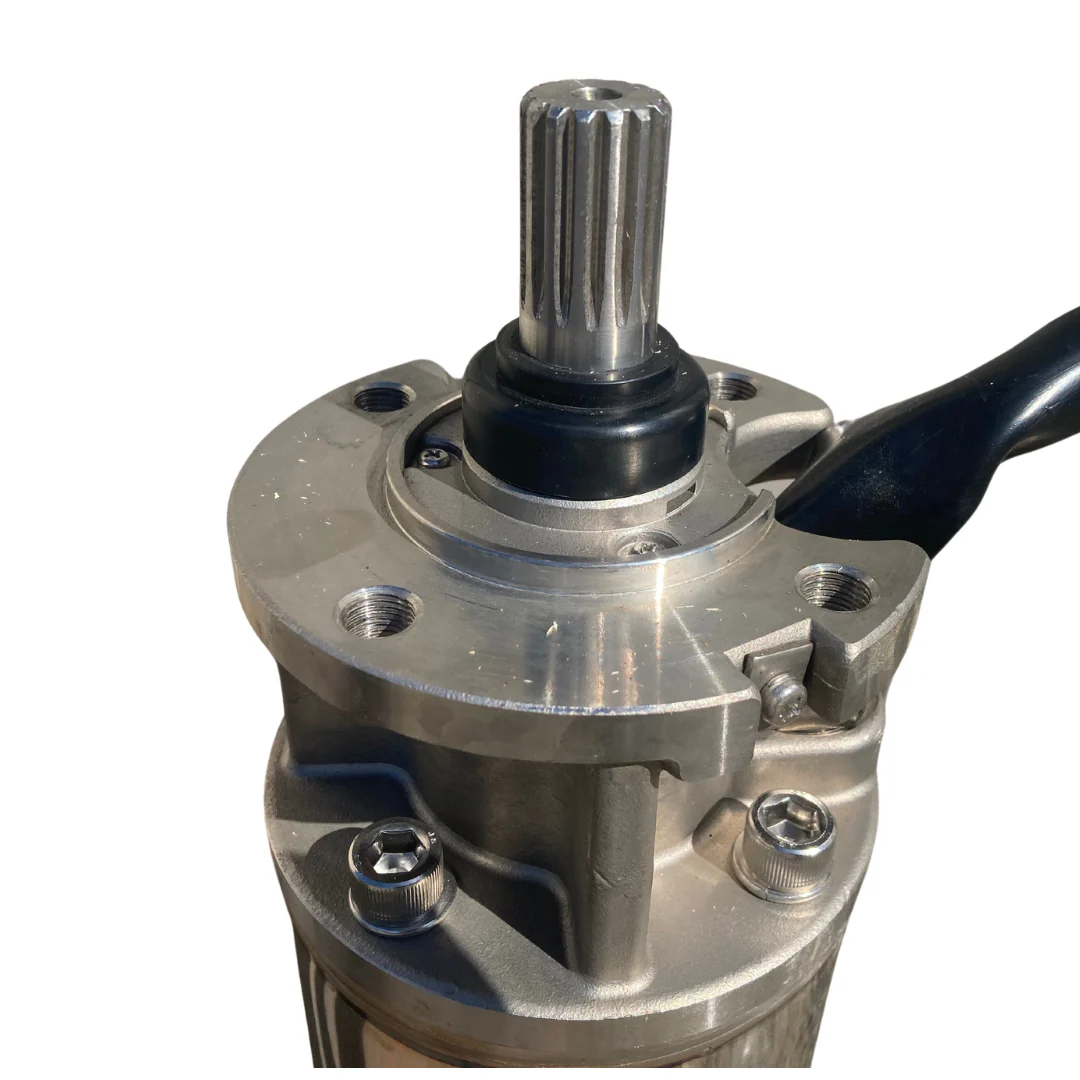

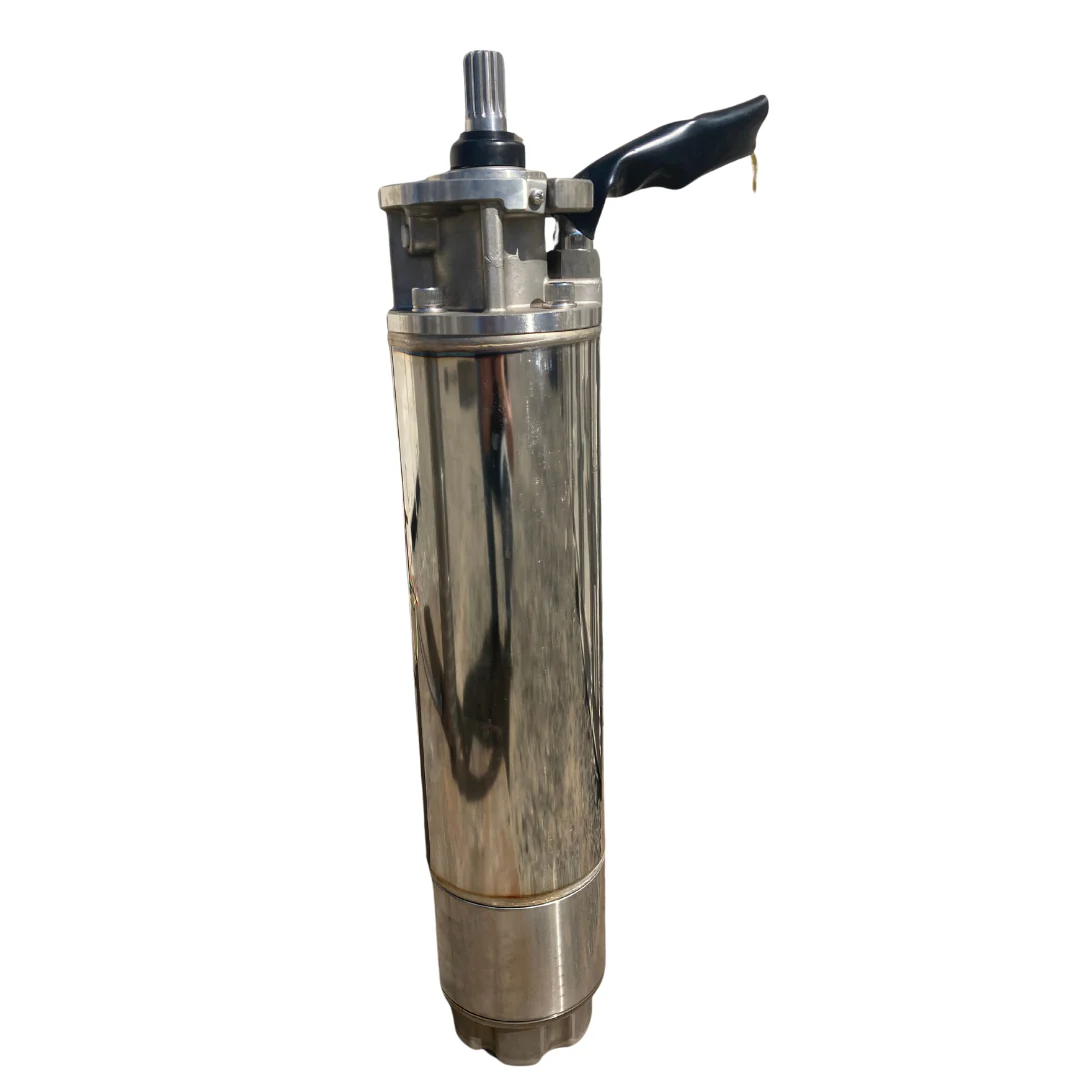

- 25HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End
- 5" outlet 500RPS250 329-660GPM Pump End, 8" Outside Diameter
- 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
- Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.
Customer Supplied Magnetic Starter Box.
| Total Head | Gallons Per Minute (GPM) |
| No head | 660 |
| 10 feet |
660 |
| 20 feet |
660 |
| 30 feet |
660 |
| 40 feet |
660 |
| 50 feet |
660 |
| 60 feet | 648 |
| 70 feet | 637 |
| 80 feet | 624 |
| 90 feet | 608 |
| 100 feet | 585 |
| 110 feet | 568 |
| 120 feet | 555 |
| 130 feet | 539 |
| 140 feet | 522 |
| 150 feet | 500 |
| 160 feet | 458 |
| 170 feet | 416 |
| 180 feet | 374 |
| 190 feet | 348 |
| 200 feet | 329 |
| Above 200 feet | Size Up for Optimal Performance |
