Alert: This item is sold in 25ft increments but will arrive IN ONE CONTINUOUS LENGTH. Instead of by the foot we sell by 25ft. For example, if you need 100ft of wire, order 4 of this item to reach the desired length. Product is shipped in a single, continuous spool of wire.

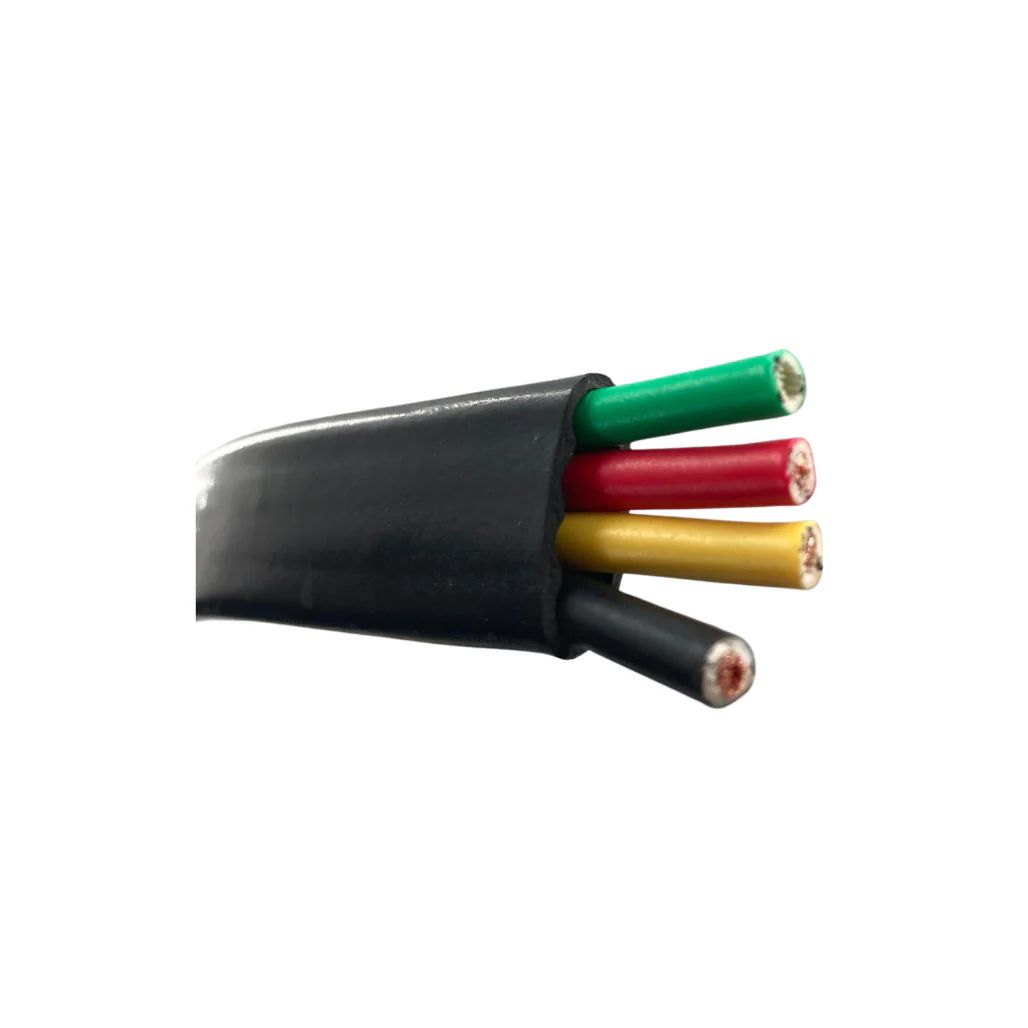

Flat jacketed submersible pump cable with three conductor wires and one ground wire. This cable connects the submersible pump motor to the above ground starter box. Rated to withstand deep submersion in wet and less than ideal conditions, both in fresh water and saltwater. Each individual strand of wire is wrapped, and all four wires are contained in a second, waterproof jacketing of Polyvinyl Chloride (PVC).
.

-6 gauge

-Priced Per 25 feet

-Annealed bare stranded copper conductors

-Operating temperature range -40° C to 75° C

-UL Listed per UL 83 Type THW as Deep Well Submersible Pump Cable

-Minimum 25' to maximum 1000'.

HP of 220V Pump	Wire Gauge, Single Phase 3+G, 60HZ, 75℃ Cable (feet)
	14	12	10	8	6	4
1/2	400	650	1020	1610	2510	3880
3/4	300	480	760	1200	1870	2890
1	250	400	630	990	1540	2380
1.5	190	310	480	770	1200	1870
2	150	250	390	620	970	1910
3	120	190	300	470	750	1190
5	0	110	180	280	450	710



Note: Item does not ship with rest of order. 5-7 days standard shipping.
